4000m Barrel Volume Drilling Mud Testing Equipment For Lost Circulation Material Test

Name: 4000m Barrel Volume Drilling Mud Testing Equipment For Lost Circulation Material Test
Brand: TR Solids Control
Price: 1 USD

4000m Barrel Volume Drilling Mud Testing Equipment For Lost Circulation Material Test Manufactures

Model Number : QD-2

Model : QD-2

Barrel volume : 4000ml

Air supply : nitrogen

Operating pressure : ～7MPa

Crack size : No. 1～6

Plugging depth : 0～77mm

Place of Origin : Xi'an,China

Brand Name : TR Solids Control

Certification : ISO

MOQ : 1 pc

Price : Negotiable

Packaging Details : Pallet or wooden case

Delivery Time : Within 15 days after deposit

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100 pcs per month

Contact Now

QD-2 Lost circulation material test device

_Description

In the selection of lost circulation material (LCM) it is very important to determine its shut-off capacity to the formation. The hole size changes with the formation so the particle size of LCM must be selected. This instrument is used to help evaluating the LCM. It can simulate different formation effectively using different sized cracks and bed and can evaluate the shut-off efficiency and volume of leakoff before the seal.

This instrument is made in accordance with API recommend practice and a plugging pressure backing device is added aims to checkout the pressure needed for damaging the plugging zone and research the structure strength of LCM. In addition, this instrument is easy to operate and has small volume and simple structure. It can simulate leakoff parameter of different situation.

_Model _QD-2

_{The main technical parameters of the instrument}

_{Sequence number}	_Name	_{Technical specifications}
₁	_{Barrel volume}	_4000ml
₂	_{Air supply}	_nitrogen
₃	_{Operating pressure}	_～7MPa
₄	_{Crack size}	_{No. 1～6}
₅	_{Plugging depth}	_0～77mm

4000m Barrel Volume Drilling Mud Testing Equipment For Lost Circulation Material Test

Product Tags:

drilling fluid equipment

mud testing equipment

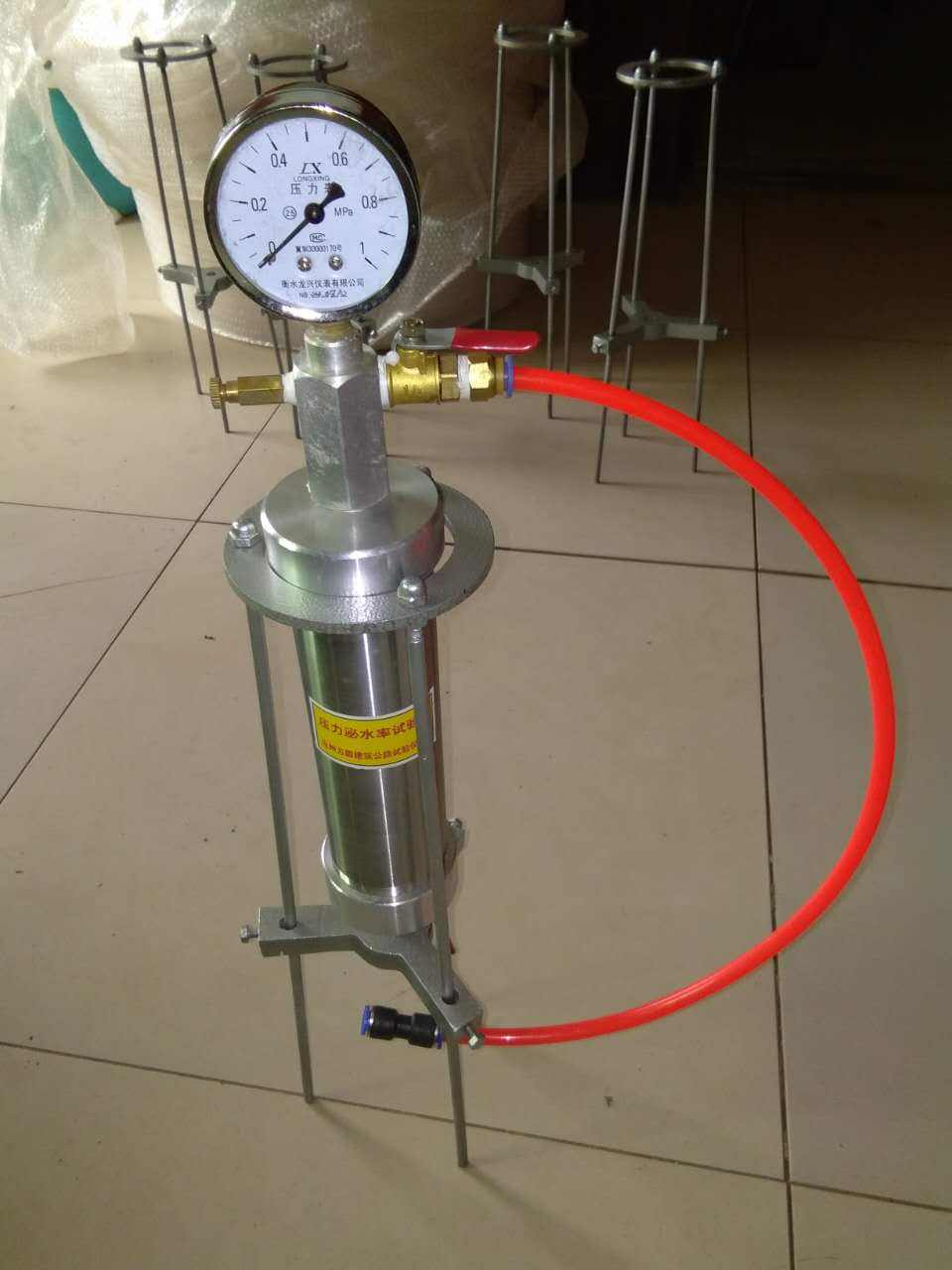

4000m Barrel Volume Drilling Mud Testing Equipment For Lost Circulation Material Test Images
