Forging Type Well Drilling API Stabbing Guide for Casing Tubing
Product Overview

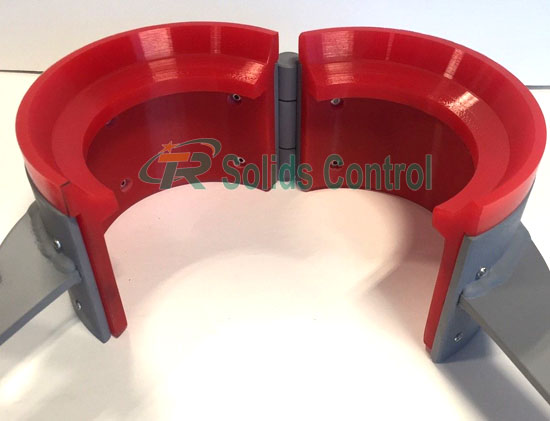

The casing Stabbing Guide is a chucking tool in connection quick, it not only a guiding role, as well as protect the thread for pipe connections. This SG stabbing guide is simple in structure, safe and reliable, and easy for operation. Applies to tubing, casing fast on the buckle, easy to operate, can effectively prevent the deduction process to string thread damage. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.
Stabbing guide model SG is easy to operate and can protect the screw thread of pipes effectively. Our Stabbing Guide is designed to protect pipe connectors when coupling tubing or casing, stabbing guide is simple in structure, safe and reliable, and easy for operation.
Our Stabbing Guide are available from 2-3/8" to 20".
Main Advantages of Our Oilfield Stabbing Guide
- The operation of latch lock is flexible and convenient.
- Screw thread and coupling are not damaged with composite material used.
- Nitrile rubber material or Nylon material is better material for long-life operation.
- It has a relatively large guiding conical surface.
- Stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.
Technical Data of Our Oilfield Stabbing Guide
| Model | Applicable diameter of tubulars ( in ) |
| SG 2 3 / 8 T | 2 3 / 8 Tubing |
| SG 2 7 / 8 T | 2 7 / 8 Tubing |
| SG 3 1 / 2 T | 3 1 / 2 Tubing |
| SG 4 T | 4 Tubing |
| SG 4 1 / 2 T | 4 1 / 2 Tubing |
| SG 4 1 / 2 C | 4 1 / 2 Casing |
| SG 5 C | 5 Casing |
| SG 5 1 / 2 C | 5 1 / 2 Casing |
| SG 6C | 6 Casing |
| SG 6 5 / 8 C | 6 5 / 8 Casing |
| SG 7C | 7 Casing |
| SG 7 5 / 8 C | 7 5 / 8 Casing |
| SG 8 5 / 8 C | 8 5 / 8 Casing |
| SG 9 5 / 8 C | 9 5 / 8 Casing |
| SG 10 3 / 4 C | 10 3 / 4 Casing |
| SG 11 3 / 4 C | 11 3 / 4 Casing |
| SG 13 3 / 8 C | 13 3 / 8 Casing |
| SG 13 5 / 8 C | 13 5 / 8 Casing |
| SG 14C | 14 Casing |
| SG 16C | 16 Casing |
| SG 18 5 / 8 C | 18 5 / 8 Casing |
| SG 20C | 20 Casing |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include solid control equipment, cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.
They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
