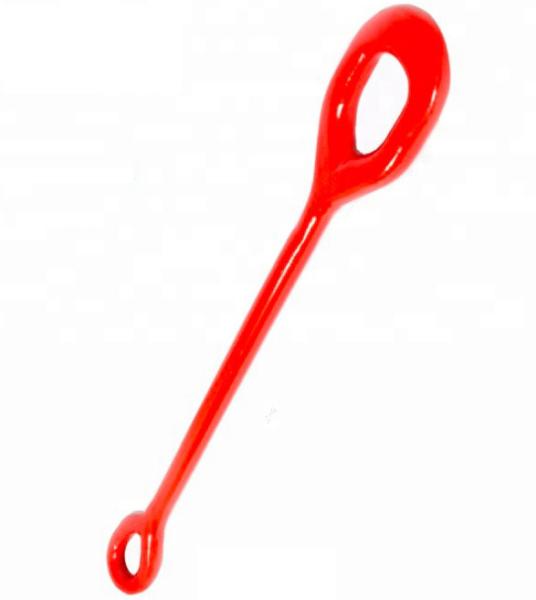

Oilfield Weldless Elevator Link and Perfection Elevator Links
Product Profile
Elevators links are suitable for hanging pipes in the operation of well drilling or repairing. According to the structures, they have two forms: Type DH & Type SH. The weldless links are forged with high quality alloy steel. They are designed and manufactured according to API Spec 8A/8C.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads. Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available.
These kinds of elevator links are designed in accordance with API 8C,7K and relative technical standards and have gotten a production license from relative authority.There are weldless link and perfection link.
Characterstics of Our Oilfield Elevator Link
- They are designed and manufactured according to API spec8A/8C for drilling and production hoisting equipment.
- Weldless links are forged with high-quality alloy steel.
- It owns merits of being wearable, long service period, and safe and convenient operation, etc.
- Single-arm flying ring is made up of high-strength, and high toughness alloy structure subject to whole-body forging, special heat treatment, surface reinforcement and nondestructive flaw detection.
Our main products
Drill Equipment, Well control system, Solid Control Equipment, OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
Technical Data of Our Oilfield Elevator Link
| Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
| Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
| Length (cm) | 180 | 270 | 270 | 330 | 360 |
| Specifications | SH 50 | SH 65 | SH 75 |
| Rating loads | 50t | 65t | 75t |
| Length (cm) | 110 | 150 | 180 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including solid control equipment, oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
