Oilfield Well Drilling 180m3/H 800mm Mud Gas Separator

Capacity 180m3/h Mud Gas Separator in Oilfield Well Drilling Mud System

Product Introduction

Mud gas separator is ideal for use where drilling is likely to encounter large volumes of gas intruded, sour gas or when an operator is drilling with an underbalanced mud column. TRZYQ series mud gas separator is professional equipment to treat the gas invading mud. When the drilling mud has gas invading, the proportion of its weight and viscosity has a greater deviation not to meet the requirements of drilling. The serious situation is that would cause well kick, and even blowout accident occurred, if not to treat it timely.

TR Solids Control is a leader in mud gas separator. Our TRZYQ series mud gas separator is devided into normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure. TR mud gas separator is a field proven and extremely reliable safety equipment designed for today’s challenging drilling operations. It is your best choice to prevent drilling mud invasion.

Main Benefits of TRZYQ Series Mud Gas Separator

1. Efficient degassing performance.
2. Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
3. Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
4. Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
5. Reduces Hazardous Gas Threat. Separated gas is carried by discharge lines to safe area for combustion.
6. Separates free gas accumulations especially toxic gases from drilling mud system.

Technical Info. of TRZYQ Series Mud Gas Separator

Product Application

Liquid gas separator is made of suction assembly, drain pipe assembly, ladder, pedestal and tank body assembly. Before used the separator put it on the smoothy earth and connect the suction pipe. The suction pipe connect used 5″national standard flange, one side of flange welding 5″ suction line connect the pump and connect the flange by bolt. Welding ″fuller unionat the export of exhaust pipe and welding it with 8″pipeline. Connect drain pipe with 8flange and welding the other side of this flange with 8 pipeline.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Oilfield Mud Gas Separator

Drilling Mud Gas Separator

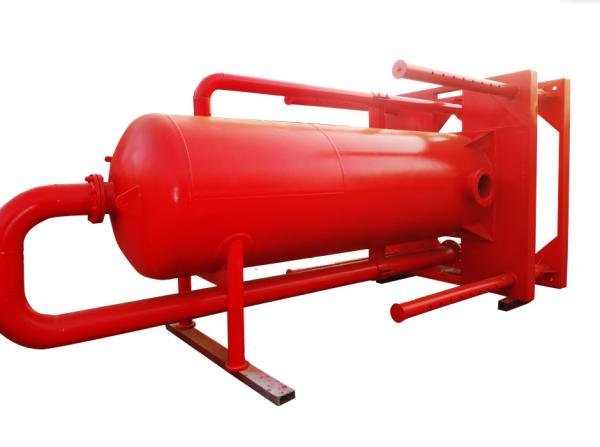

Oilfield Well Drilling 180m3/H 800mm Mud Gas Separator Images
