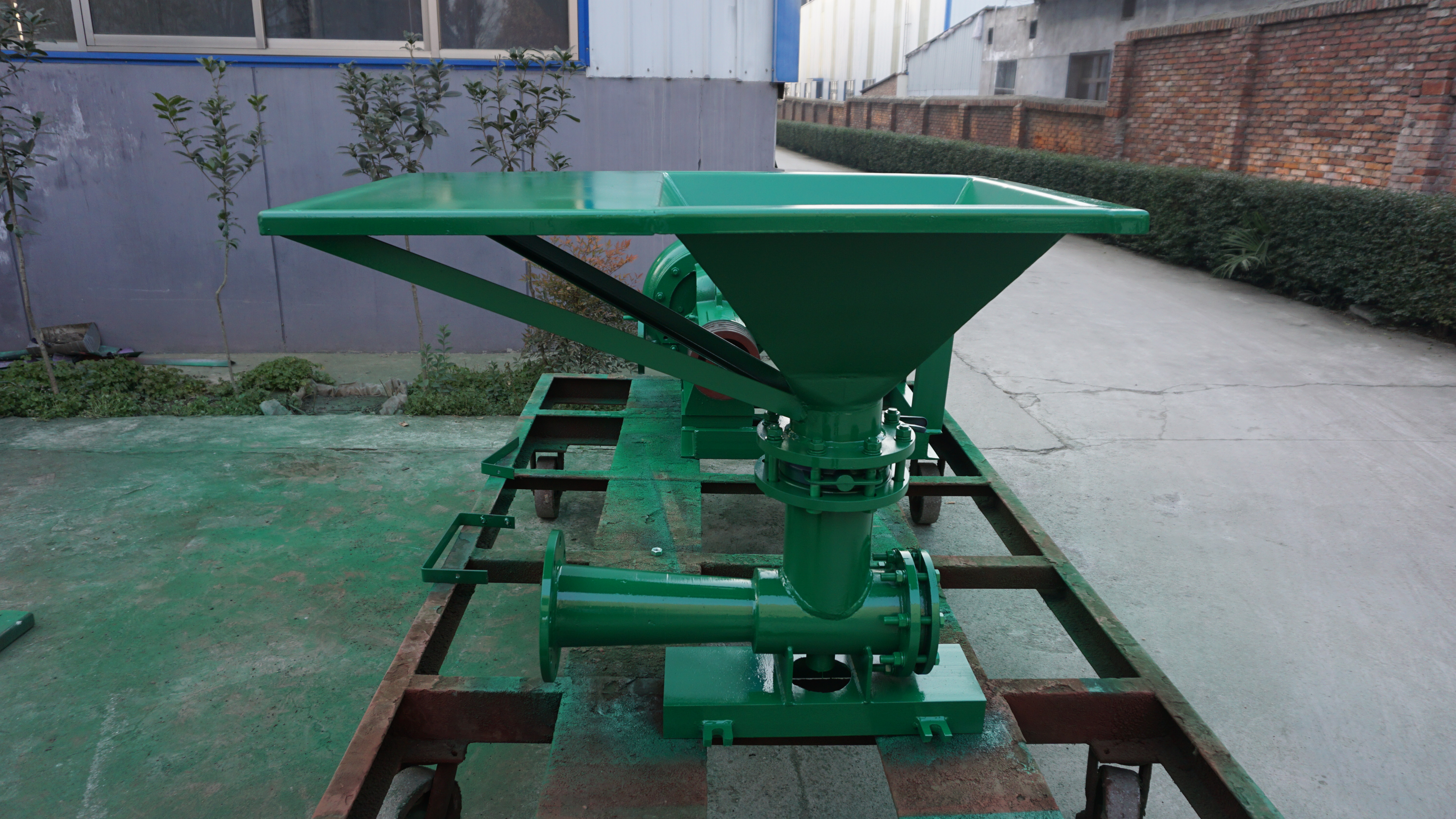

Mud Hopper for Jet Mud Mixer
Product Introduction
Jet mixing device is used to prepare or add more drilling fluid, change the density, viscosity, water loss of the drilling fluid.
With this device, the raw materials for drilling fluid could be mixed and devided well.
There are two kinds of hopper:
* Rotational flow Hopper
* Jet Hopper
This efficient, high performance mud hopper developed by our company can improve the shear and dispersion of solids in kinds of mud mixing devices. It includes steel feed funnel sack table ,jet nozzle, venturi, butterfly valve, and mounting base. Individual components are also offered.
Design Advantages of TRSL Mud Hopper:
- Low-pressure, high-volume design.
- High feed rates for all types of solids.
- Exclusive jet nozzle/venturi design.
- Suitable for long return lines or high tanks.
- Efficient shearing to prevent balls or slugs.
- Rapid, uniform dispersion.
- Epoxy coated.
- Built-in sack table and receiving basin.
- Flexible operation for weighted or underweighted mixing applications.
Main Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
